SPICE POWDER, CHEMICAL POWDER, BIO- PHARMA, ATTA, MAIDA, BASEN STICKY POWDERS PACKING MACHINES
POWDER PACK (M/C MODEL : CR-PP-500 HI-SPEED SERVO AUGUR FILLER)
Product Stock Quantity

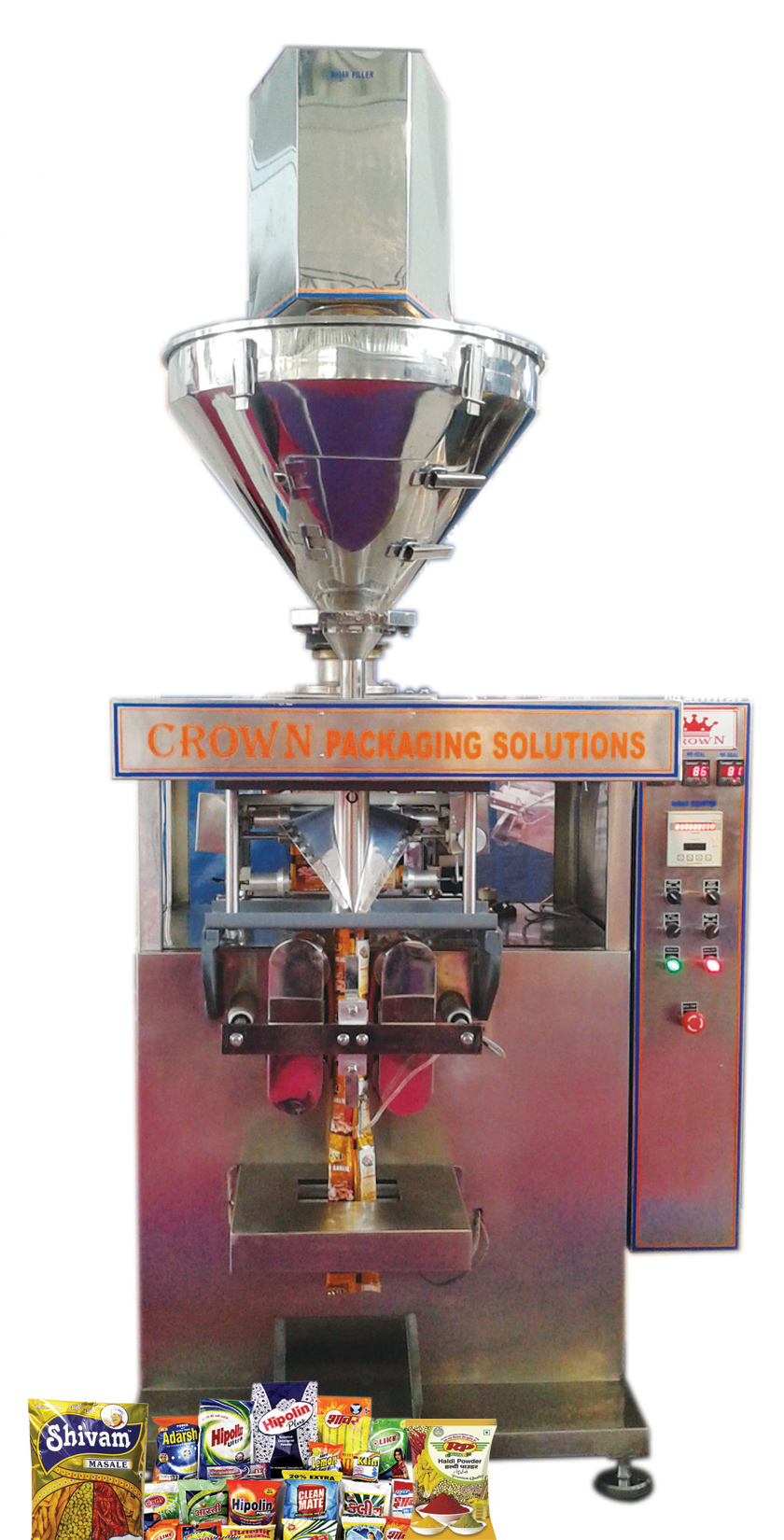

POWDER PACK MACHINE MODEL CR-PP-500 HI-SPEED SERVO AUGUR FILLER): Fully Automatic Form Fill Seal machine to pack powders in aluminum foiled laminate pouches. This machine operates on SERVO MOTOR AUGUR Screw feeding system with Stirrer in conical hopper. Range: 250 grams 500grams.
| FEEDING HEAD : | Servo Auger screw filler |
| PACKING RANGE : | 250 gram to 500 grams |
| PRODUCTION SPEED : | 35- 40 pouches/min (depending on product) |
| MACHINE CONTROL SYSTEM : | P.L.C |
| FILM WIDTH : | up to 350 mm |
| FILM THICKNESS : | 60-100 microns |
| FILM MATERIAL : | Any laminated films |
| SEALER HEATING SYSTEM : | Continues |
| FILLING ACCURACY : | +/- 1% (Depends on product) |
| INNER CORE DIA. OF FILM ROLL : | 70mm |
| OUTER DIA. OF THE FILM ROLL : | up to 350mm |
| POUCH STYLE : | Centre Seal Pillow Type |
| POUCH WIDTH : | Up to 150 mm |
| POUCH LENGTH : | Up to 175 mm |
| POWER CONSUMPTION : | 5KW/Hour |
| PEAK POWER : | 5 kW |
| POWER REQUIREMENT : | Three Phase, 440 Vac, 50 Hz |
| POUCH COUNTER : | Provided |
| DATE PRINTING DEVICE : | 5 to 6 weeks from the date of advance received |
| PHOTO CELL : | Provided |
| MACHINE DIMENSIONS IN ‘MM’ : | 2500(H) X 1300(W) X 1950(Depth) Approx |
| NET WEIGHT : | 700 kgs (approx) |
| Demo Video | <iframe width="560" height="315" src="https://www.youtube.com/embed/I5iBOsRTD9E" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe> |
