POWDER PACK M/C (MODEL : CR-PP-5000.HI-SPEED SERV

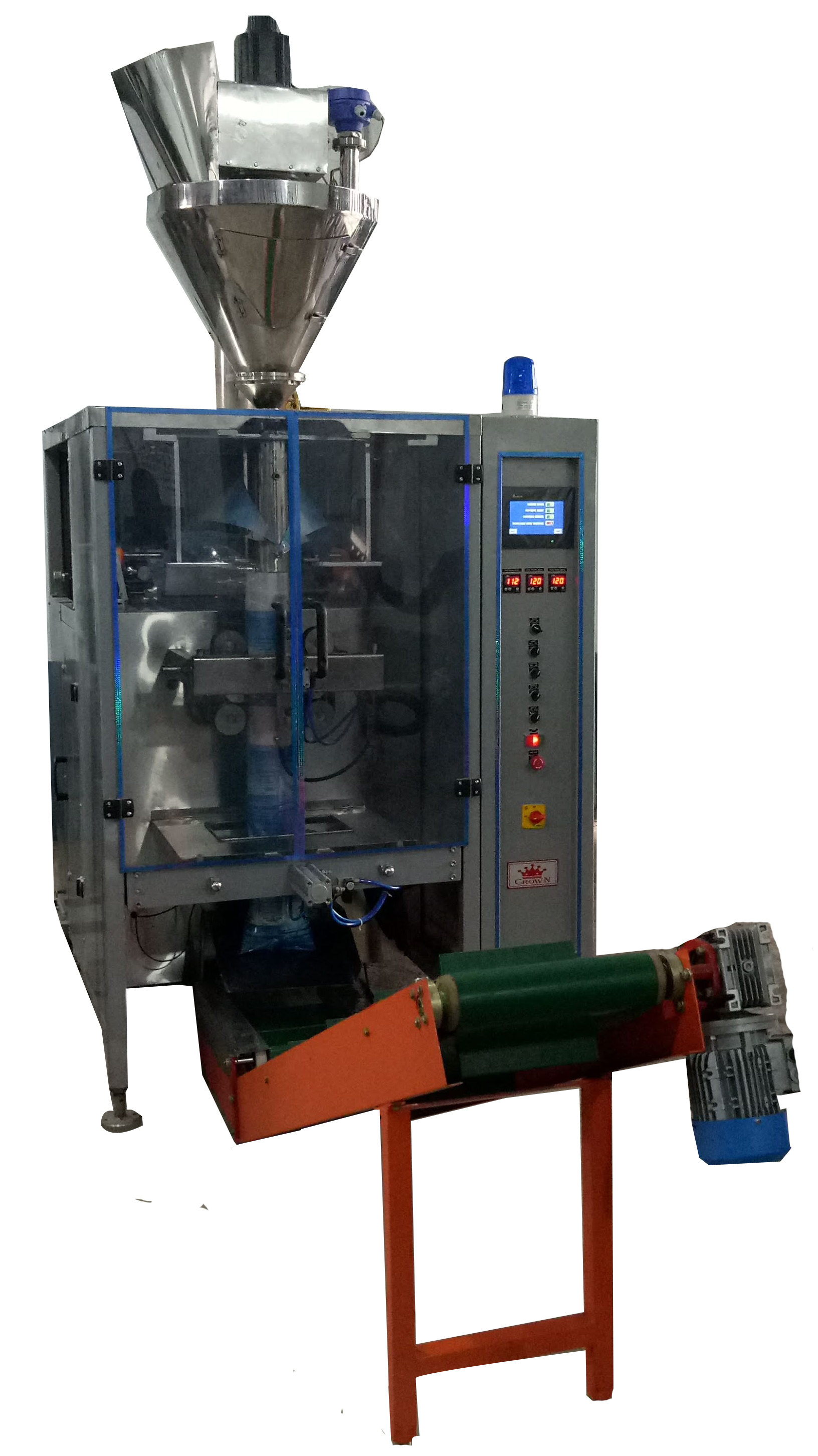

MODEL: CR-PP-5000.HI-SPEED SERVO AUGUR FILLER Fully automatic Pneumatic operated vertical pouch form fill & seal machine to pack ‘Powders’ in any heat sealable laminated poly pouches in centre seal pillow pouches. With fine adjustment screw feeding auger filling system with “Servo Motor”. Machine supported on angular heavy duty steel structure, Product Range: 1000 – 5000gms. Production Speed : 30 – 35 Pouches/ minute @ 1000gms. 10 – 12 pouches per minutes @ 5000gms.





FEEDING HEAD : Servo Auger Screw filler
PACKING RANGE : 1000 – 5000gms
PRODUCTION SPEED : 30 – 40 pouches per minutes @ 1000 gm, 10 – 12 pouches per minutes @ 5000 gm
MACHINE CONTROL SYSTEM : P.L.C (Screen touch Programmed Logic Controller).
FILM WIDTH : up to 650 mm (Subject to confirmation)
FILM THICKNESS : 100 - 150 microns
FILM MATERIAL : Laminated
SEALER HEATING SYSTEM : Continues
FILLING ACCURACY : +/- 0.5-1%
INNER CORE DIA. OF FILM ROLL : 70mm
OUTER DIA. OF THE FILM ROLL : up to 400mm
POUCH STYLE : Center sealed Pillow type
POUCH WIDTH : up to 300 mm (Subject to confirmation)
POUCH LENGTH : up to 450 mm (Subject to confirmation)
COMPRESSED AIR PRESSURE : 6.5 kg / cm2 at 40 C
AIR CONSUMPTION : 35 m3 / Hour
POWER CONSUMPTION : 10 kW / Hour
PEAK POWER : 12 kW
POWER REQUIREMENT : 3 Phase, 415 V, 50Hz plus Neutral
FILM GUARD MECHANISM : Auto stop when film is exhausted
POUCH COUNTER : Provided
DATE PRINTING DEVICE : 5-6 weeks from the date of receipt of you’re confirm order and along with requisite advances.
PHOTO CELL : Provided
MACHINE DIMENSIONS IN ‘MM’ : 4000(H) x 1500(W) x 2000(Depth)
NET WEIGHT : 1600 kgs (approx)
